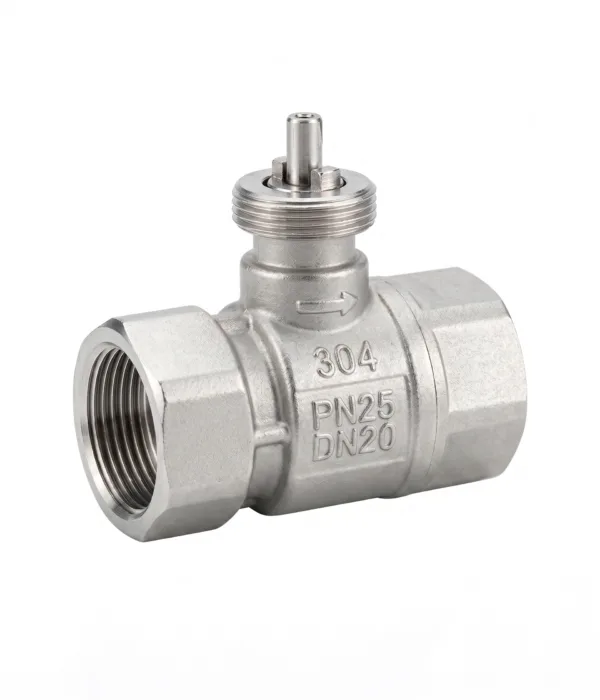

Two-Way Motorized Valve

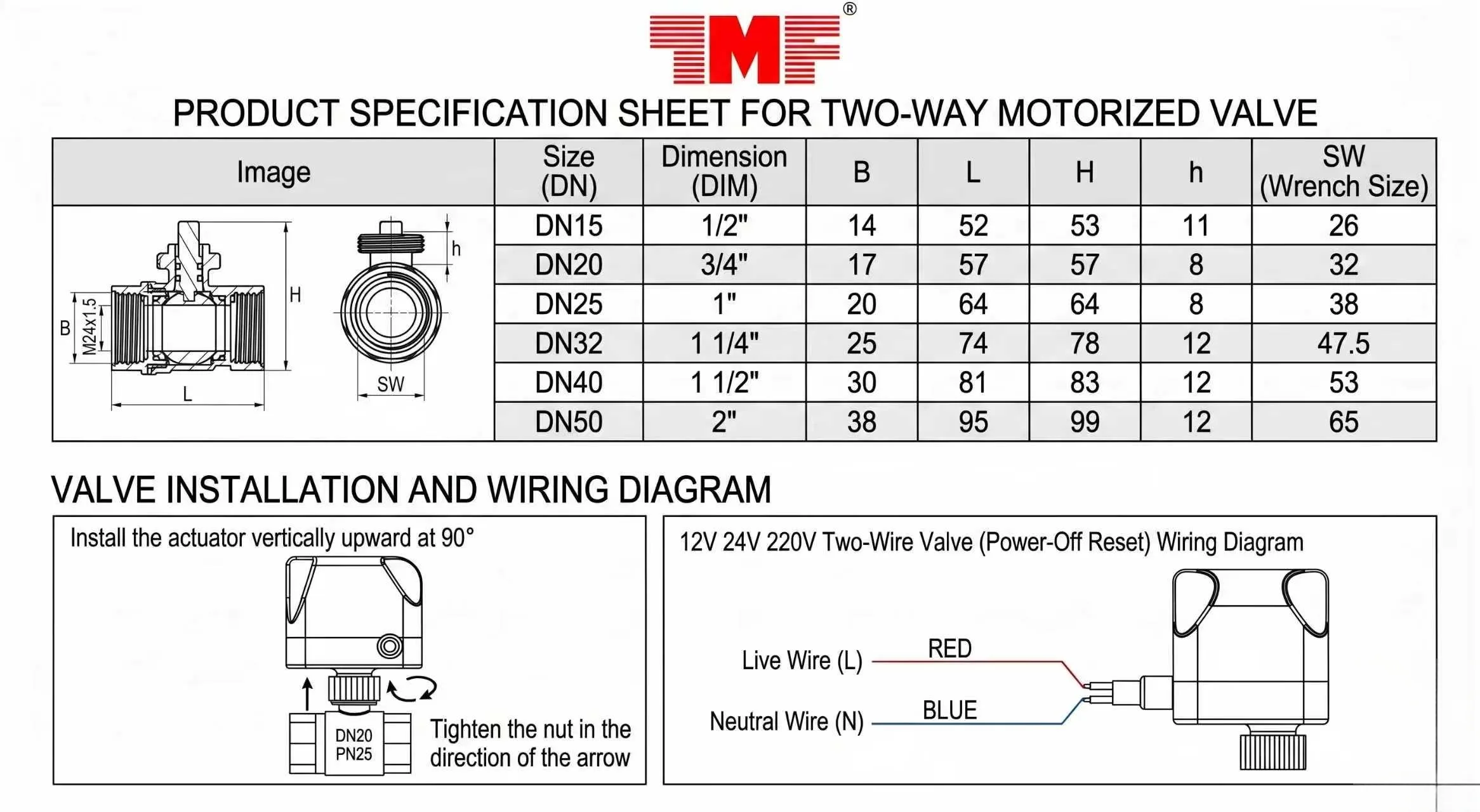

Available Port Sizes: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, and 2″ configurations. (Note: Our catalog utilizes standard inch measurements to align with North American and European engineering standards).

Operating Voltages: Versatile electrical compatibility with options for 12V, 24V, and 220V systems.

Actuation Type: Two-Wire control with an integrated Power-Off Reset (fail-safe) function, ensuring the valve automatically returns to its default safety position if external power is lost.

Installation Tooling: Wrench sizes (SW) are standardized from 26mm (for the 1/2″ model) up to 65mm (for the 2″ model), allowing contractors to use standard hand tools for mechanical connections.

Why Distributors Choose This Series: By standardizing on a valve series that offers clear dimensional tolerances, multiple voltage inputs, and a reliable power-off reset fail-safe, distributors can confidently supply contractors with a component that minimizes callbacks, reduces installation errors, and elevates overall system integrity.
